Permanent Magnet Types丨Core Magnets

2024-11-29

Permanent magnets play a vital role in countless industries, offering consistent magnetic strength without the need for external power. Among the most widely used types are neodymium (NdFeB) magnets, ferrite magnets, alnico magnets, and samarium cobalt (SmCo) magnets. Each type has distinct properties tailored to specific applications.

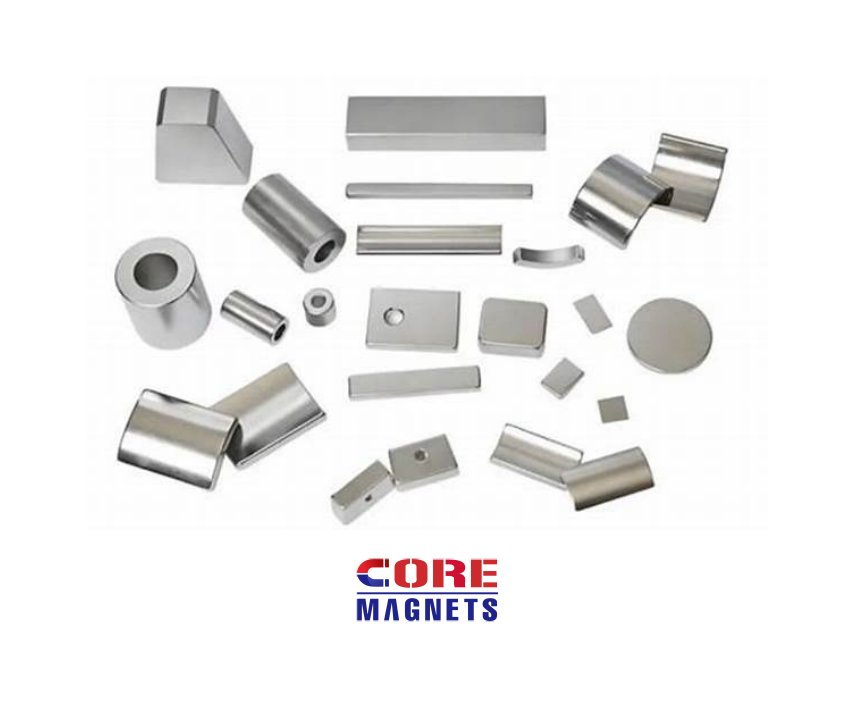

1. Neodymium Magnets (NdFeB Magnets)

Overview:
Neodymium magnets, also known as NdFeB magnets, are the strongest permanent magnets available. They are made from a combination of neodymium, iron, and boron, offering exceptional strength and versatility.

Key Features:

  • High Magnetic Strength: Best suited for compact applications requiring maximum power.
  • Applications: Motors, sensors, speakers, medical devices, and industrial equipment.
  • Temperature Range: Performs well up to 80–200°C, depending on the grade.
  • Corrosion Resistance: Requires protective coatings (nickel, epoxy) for durability.

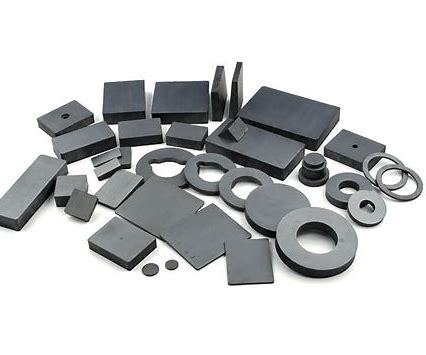

2. Ferrite Magnets (Ceramic Magnets)

Overview:
Ferrite magnets, also called ceramic magnets, are highly cost-effective and widely used due to their affordability and resistance to demagnetization.

Key Features:

  • Durability: Excellent resistance to corrosion and high temperatures (up to 250°C).
  • Applications: Loudspeakers, refrigerator magnets, automotive sensors, and hobby crafts.
  • Magnetic Strength: Lower than neodymium magnets but sufficient for many applications.
  • Cost-Effectiveness: Ideal for bulk production and price-sensitive projects.

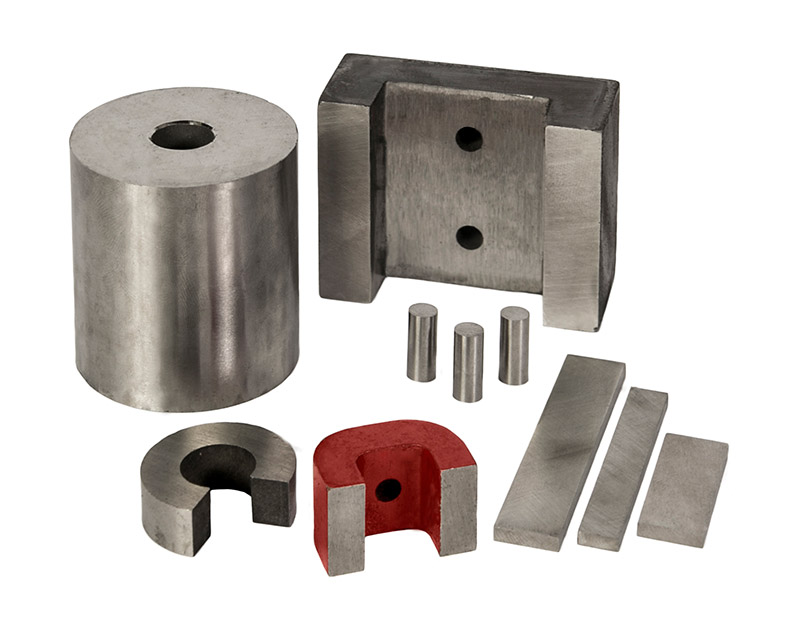

3. Alnico Magnets

Overview:
Made from aluminum, nickel, and cobalt, alnico magnets are known for their excellent stability and resistance to temperature changes.

Key Features:

  • High Thermal Stability: Performs in extreme temperatures (up to 550°C).
  • Applications: Sensors, electric guitars, measuring instruments, and aerospace components.
  • Magnetic Strength: Moderate, weaker than neodymium but stronger than ferrite.
  • Machinability: Can be cast or sintered into complex shapes.

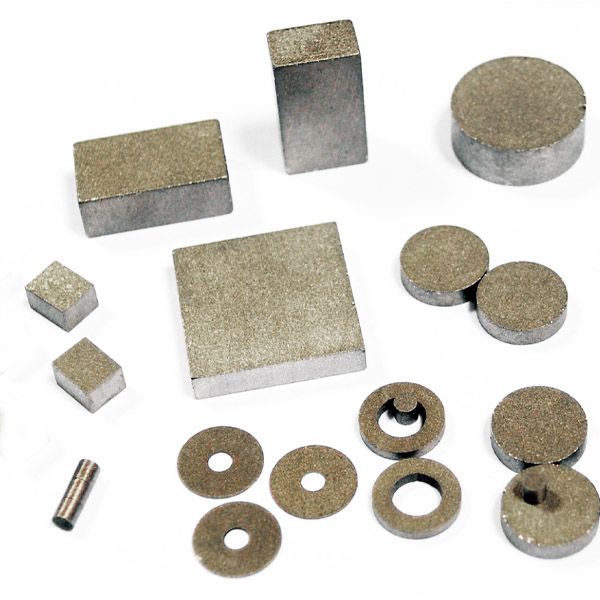

4. Samarium Cobalt Magnets (SmCo Magnets)

Overview:
Samarium cobalt (SmCo) magnets are rare-earth magnets offering exceptional resistance to corrosion and high temperatures. They are ideal for demanding environments.

Key Features:

  • High Temperature Resistance: Performs in temperatures up to 350°C.
  • Corrosion Resistance: Naturally resistant, no additional coatings needed.
  • Applications: Aerospace, military equipment, medical devices, and precision instruments.
  • Cost: Higher than other magnet types due to rare-earth content.

Each type of permanent magnet has unique characteristics suited to specific applications. Whether you need the raw power of neodymium magnets, the cost-effectiveness of ferrite magnets, the stability of alnico magnets, or the durability of samarium cobalt magnets, Core Magnets can provide the ideal solution for your business needs.
