A Comprehensive Guide to Sintered NdFeB Permanent Magnets: Classifications, Properties, and Applications

2024-10-29

1. What Are Sintered NdFeB Permanent Magnets?

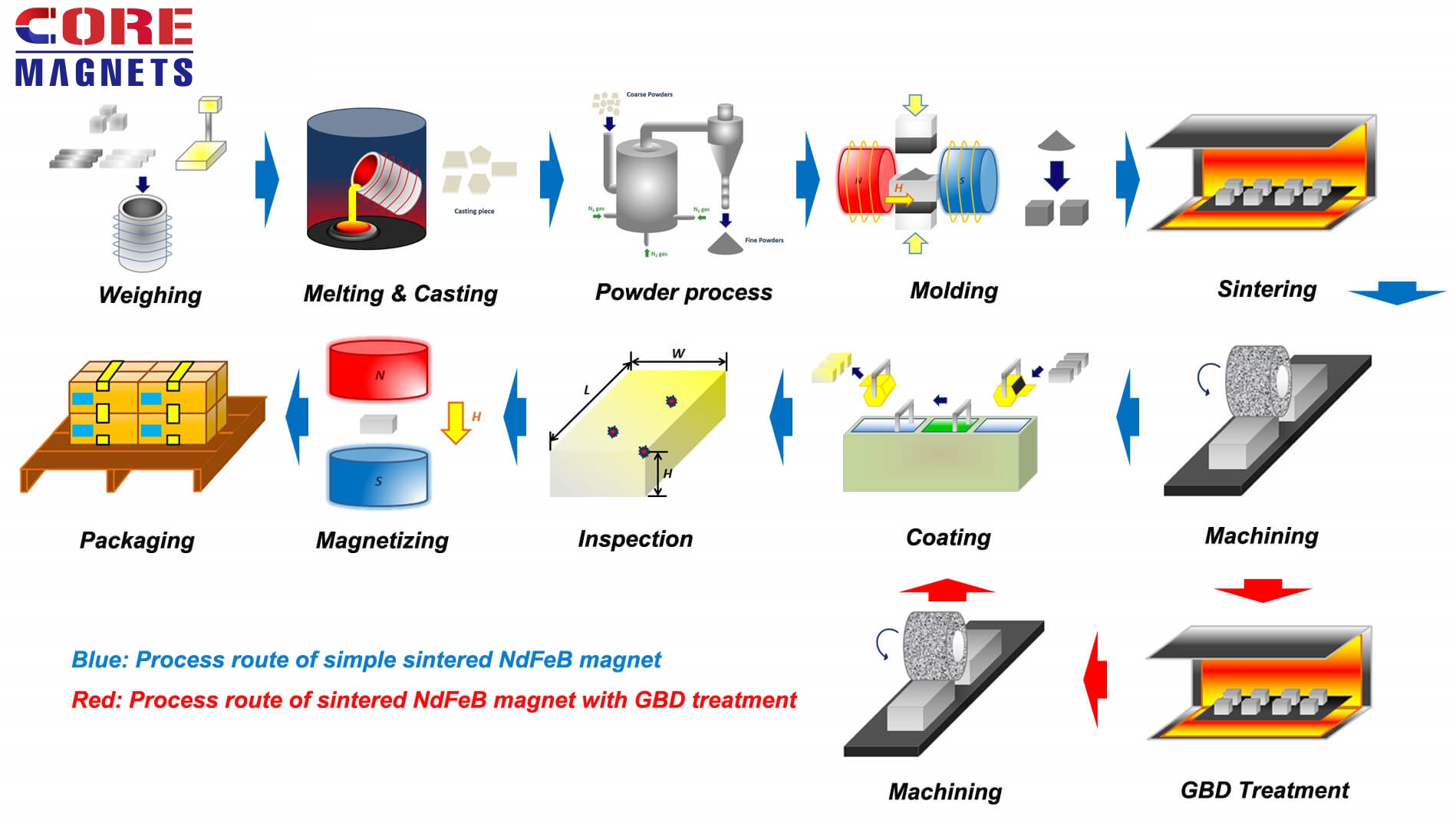

Sintered NdFeB magnets, also known as rare-earth magnets, are created through a specialized process that results in a robust magnetic product capable of maintaining its magnetic properties under various conditions. Their superior magnetic performance makes them ideal for applications that demand high magnetic field strength within compact spaces.

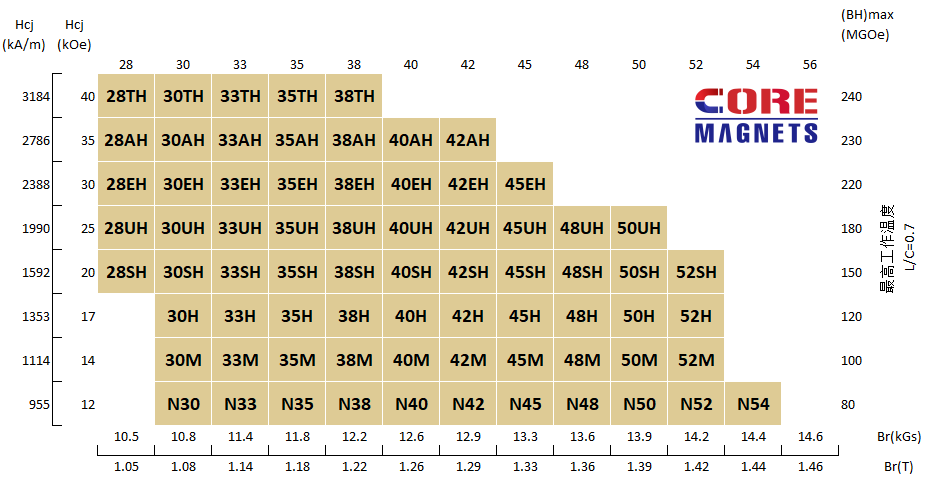

2. Classification of Sintered NdFeB Magnets

Sintered NdFeB magnets are divided into several grades, each with unique magnetic properties that suit different applications. Some common grades include:

  • Standard N Series (e.g., N35-N52): These grades are designed for general-purpose applications at temperatures up to 80°C.
  • High-Temperature H Series (e.g., N35H-N48H): These magnets provide stability in applications where operating temperatures range up to 120°C.
  • Ultra High-Temperature UH, EH, and AH Series (e.g., N35UH-N40AH): These specialized magnets are used in extreme environments where temperatures can exceed 180°C, such as in automotive or aerospace applications.

3. Key Properties of Sintered NdFeB Magnets

Understanding the key properties of sintered NdFeB magnets is crucial when selecting the right magnet for your application:

  • Magnetic Energy Density: NdFeB magnets boast the highest magnetic energy density among commercially available magnets, reaching up to 52 MGOe, depending on the grade.
  • Coercivity and Remanence: These factors determine the magnet’s resistance to demagnetization and its residual magnetism. NdFeB magnets excel in both, with high coercivity values that make them suitable for demanding applications.

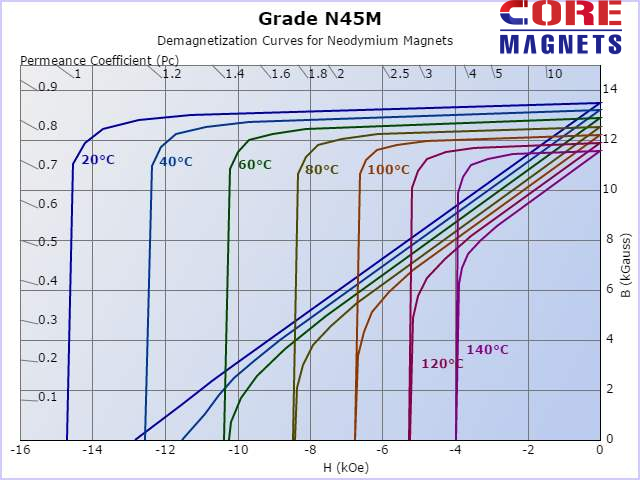

  • Temperature Stability: As described, different grades offer various levels of temperature resistance. Choosing the correct grade ensures optimal performance in specific thermal environments.

4. Applications of Sintered NdFeB Magnets

Due to their superior magnetic properties, sintered NdFeB magnets are essential in multiple high-performance applications:

  • Electronics and Consumer Products: Used in loudspeakers, computer hard drives, and MRI equipment.
  • Automotive and Renewable Energy: Essential in electric motors, wind turbines, and energy storage systems due to their compact size and strong magnetic field.
  • Industrial and Automation: Common in magnetic separators, robotic systems, and manufacturing equipment to improve efficiency and performance.

5. Choosing the Right Sintered NdFeB Magnet for Your Application

When selecting the appropriate NdFeB magnet, consider the operational environment, required magnetic strength, temperature range, and any additional surface treatment for corrosion resistance. Customized solutions can provide tailored magnetic properties, ensuring optimal fit and longevity for your application.

Sintered NdFeB permanent magnets are indispensable for industries seeking powerful, compact, and efficient magnetic solutions. By understanding the classifications, properties, and applications, businesses can make informed choices and leverage the full potential of these advanced magnets. For expert guidance on selecting the right NdFeB magnet, please contact us at Core Magnets.
